LED power supply unit constant voltage / 12V DC / 72W
Secure payments with SSL
Free shipping from 80€ in DE
Ready for shipment within 2 working days
Constant voltage power supply for LED lighting technology with integrated protection against short circuit and overload.
This very compact and flat designed LED power supply, SELV, protection class II, has an auto-recover protection circuit that responds to overload and short circuit at the output.
The input voltage can be in wide range between about 100 and 240 V AC - 47-63 Hz. It provides a constant output voltage of 12 V DC +/- 5% with a maximum power of 72 watts. The power supply is ideal for the supply according to DIN EN 55015 of 12 Volt LED lamps (e.g. G4, MR16, GX5.3 bases) as well as special LED tubes, LED modules and other consumers with input voltage 12 VDC , max. 72 Watt. Due to the flat and very compact housing form it ideal for use in e.g. furniture, in flat ceilings or otherwise confined spaces.
The potted power supply complies with protection class IP67 and can therefore also be used in covered outdoor areas. The power supply is not dimmable, cooling must be provided by sufficient air supply. The allowable working environment is -20°C ~ +50°C, 20-90% RH, non-condensing.
Technical data:
Input voltage: 100-240 VAC, typically 230 VAC, 50/60 Hz
Output voltage: 12 VDC
Output current: 6 A
Power: 72 watts

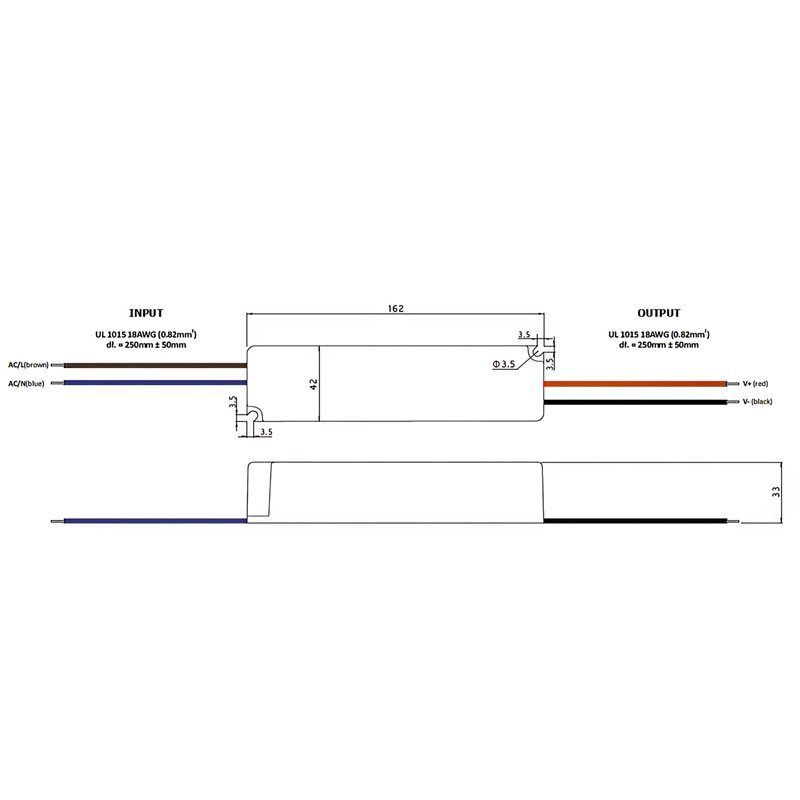

Dimensions: 162 x 42 x 33 mm (L x W x H)
