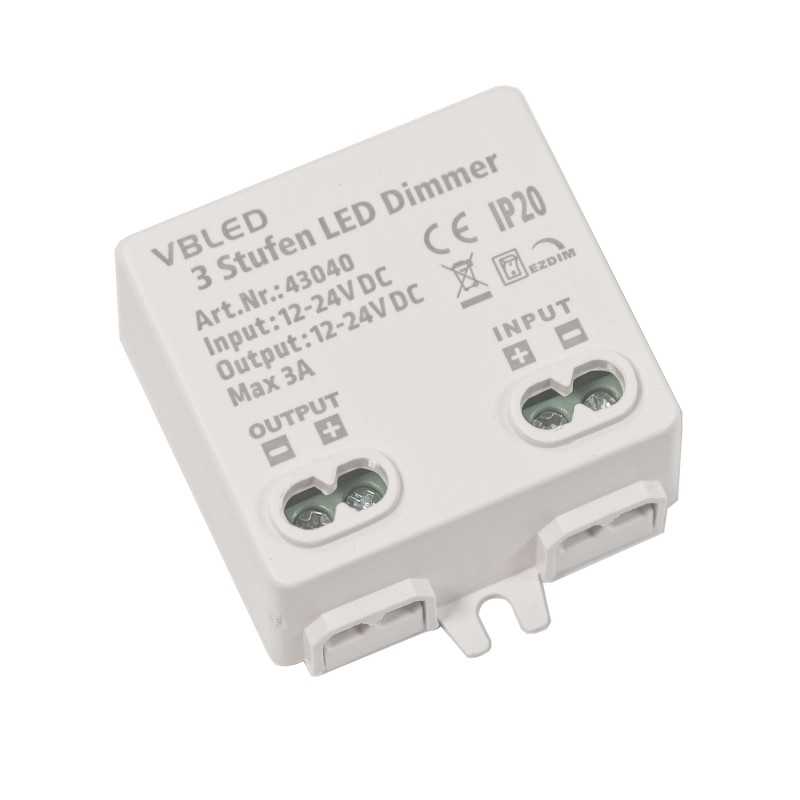

"EZDIM" 3 steps LED dimmer 12V-24V DC 3A Max for dimmable LED light

• PWM dimming technology, only compatible with 12VDC or 24VDC LED driver, not 12VAC transformer.
• Input voltage 12V-24V DC, output 12V-24V DC, max load 3A, 36W@12V, 72W@24V

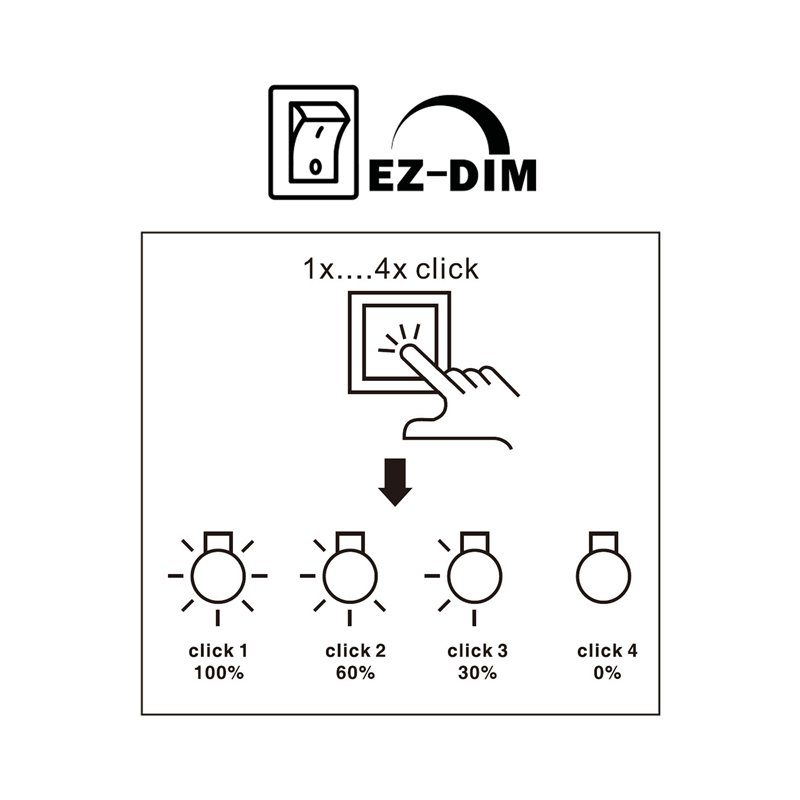

• Easy Dim with switch: turn off the power supply and turn on again in the time of 2 - 5 seconds.
• 3 steps dimming 10%-50%-100%, PWM dimming.
• Suitable for 12V-24V DC dimmable LED lights, such as strip lights, under cabinet lights.

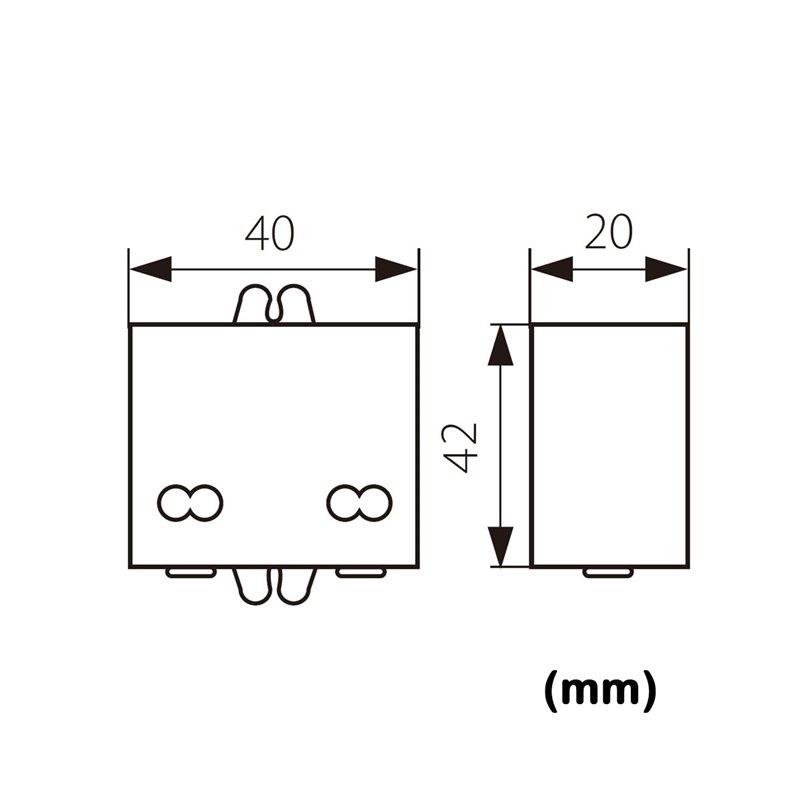

• Small and compact size can be easily mounted or hidden.

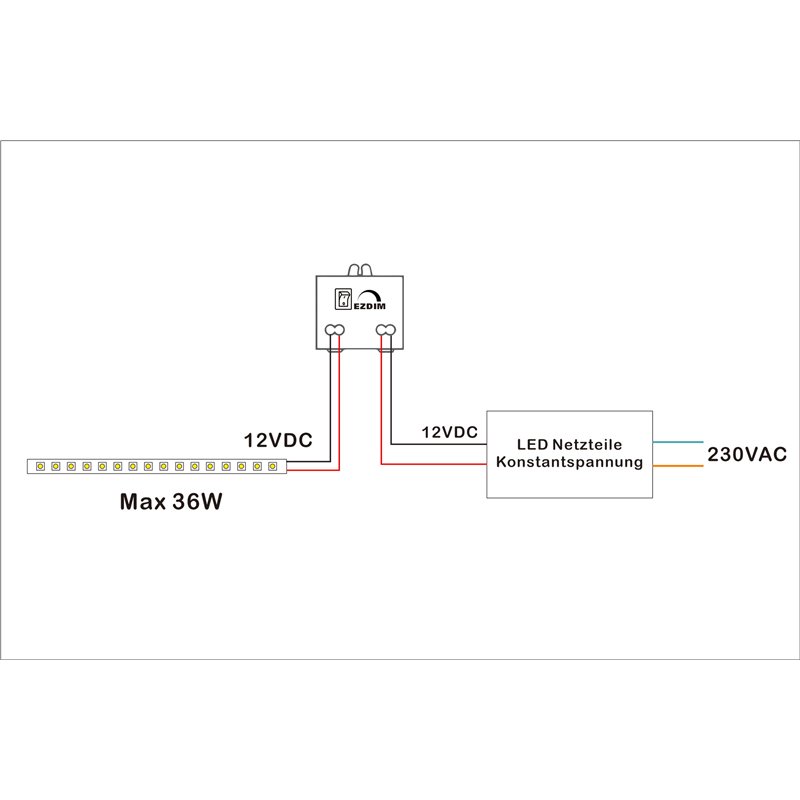

The dimmer should be installed between LED driver and LED lamp,
The LED driver must have constant voltage and 12V-24V DC output.
This dimmer is not compatible with constant current LED driver!
