"EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire
    • "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire
    • "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire
    • "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire
    • "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire
    "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire
    "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire

    "EZDIM" 3 levels (10%-50%-100%) LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire

    43040

    "EZDIM" 3 steps LED dimmer 12V-24V DC 3A Max for dimmable LED luminaire

    €15.95
    Tax included
    €13.40 Tax excl.
    Quantity
    In Stock

    For larger quantities or regular demand, we will be happy to prepare a quotation on your request by e-mail.
    Rating:
    (0)


    Secure payments with SSL



    Free shipping from 80€ in DE



    Ready for shipment within 2 working days

    Description

    "EZDIM" 3 steps LED dimmer 12V-24V DC 3A Max for dimmable LED light

    • PWM dimming technology, only compatible with 12VDC or 24VDC LED driver, not 12VAC transformer.
    • Input voltage 12V-24V DC, output 12V-24V DC, max load 3A, 36W@12V, 72W@24V
    • Easy Dim with switch: turn off the power supply and turn on again in the time of 2 - 5 seconds.
    • 3 steps dimming 10%-50%-100%, PWM dimming.
    • Suitable for 12V-24V DC dimmable LED lights, such as strip lights, under cabinet lights.

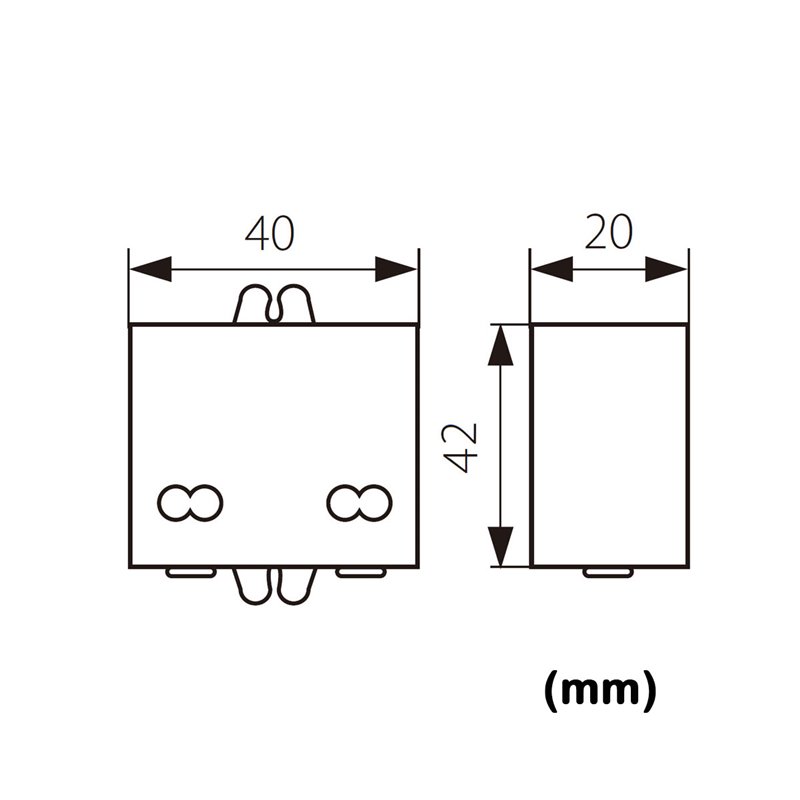

    • Small and compact size can be easily mounted or hidden.

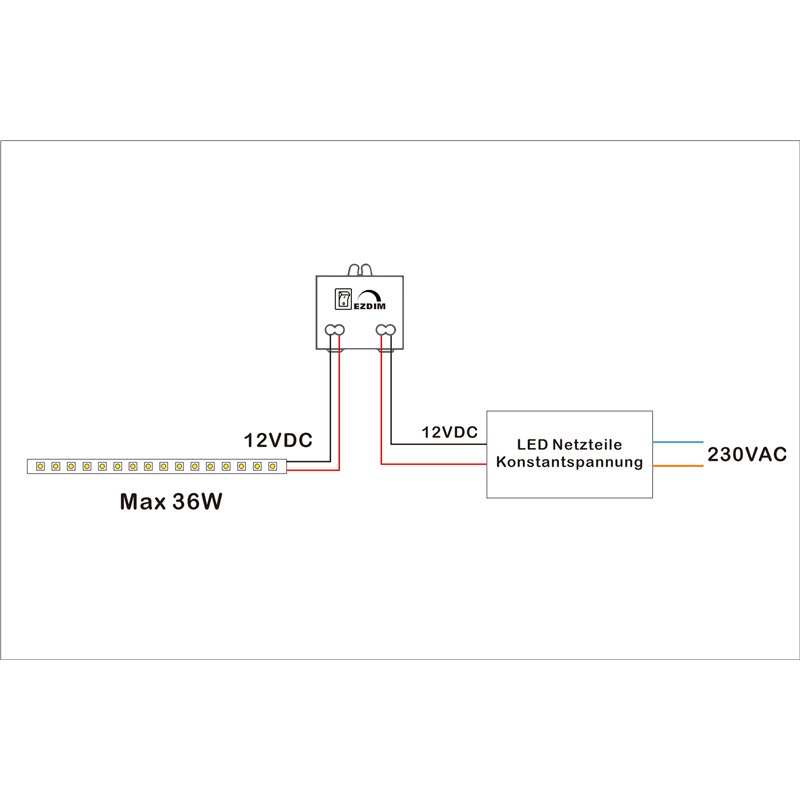

    The dimmer should be installed between LED driver and LED lamp,
    The LED driver must have constant voltage and 12V-24V DC output.
    This dimmer is not compatible with constant current LED driver!

    Product Details
    43040
    150 Items
    New
