3W Mini Recessed Spotlight Mini Spot - "Luxonix" - IP65 - 3000K illuminates front & side
3W Mini Recessed Spotlight Mini Spot - "Luxonix" - IP65 - 3000K illuminates front & side
Secure payments with SSL
Free shipping from 80€ in DE
Ready for shipment within 2 working days

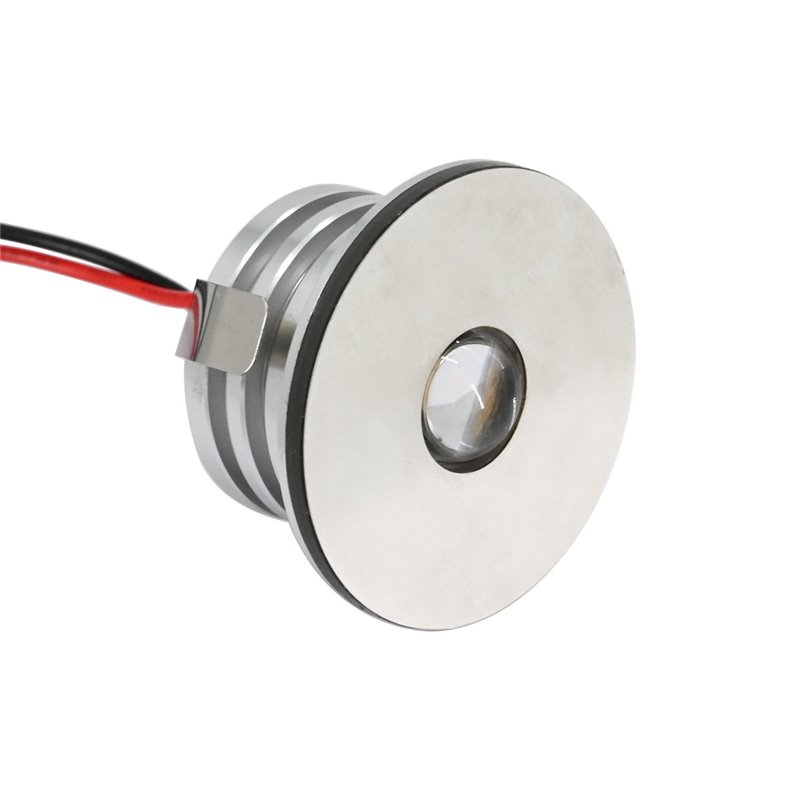

"ALDYNE" - LED Mini Spot - 3W - 700 mA constant current - illuminates front & side
The extra small, powerful and modern LED Mini Spot / recessed spot with 700mA.
Ideal for installation locations where there is little space for installation or when accent lighting is to be done.

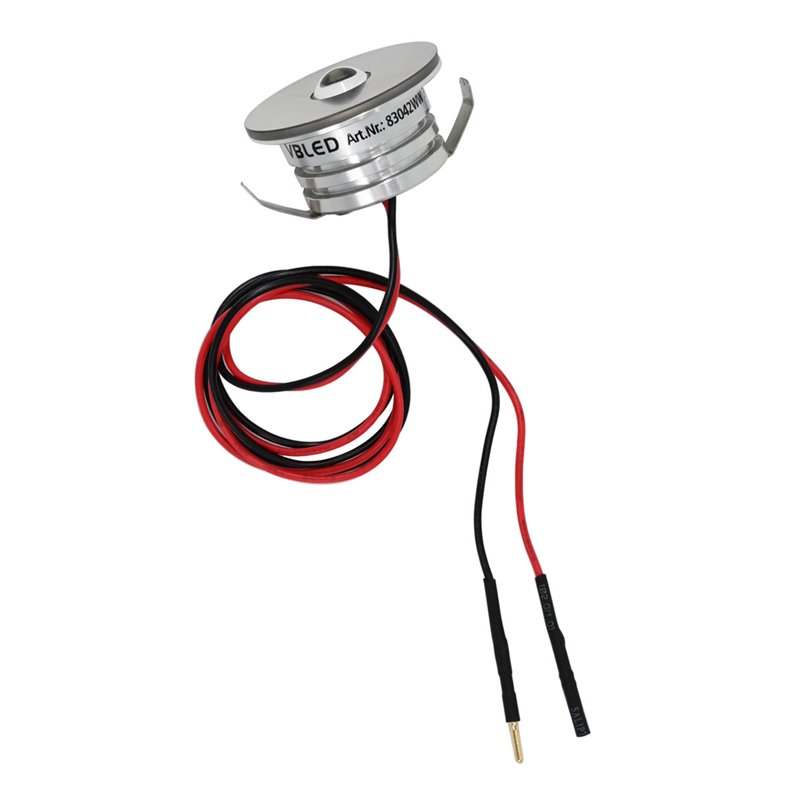

This LED recessed spot fits perfectly in any place thanks to its simple design. Installation is very easy thanks to the clamping springs in ceilings. The LED recessed spotlights each have a 17cm input cable (red) and an output cable (black).

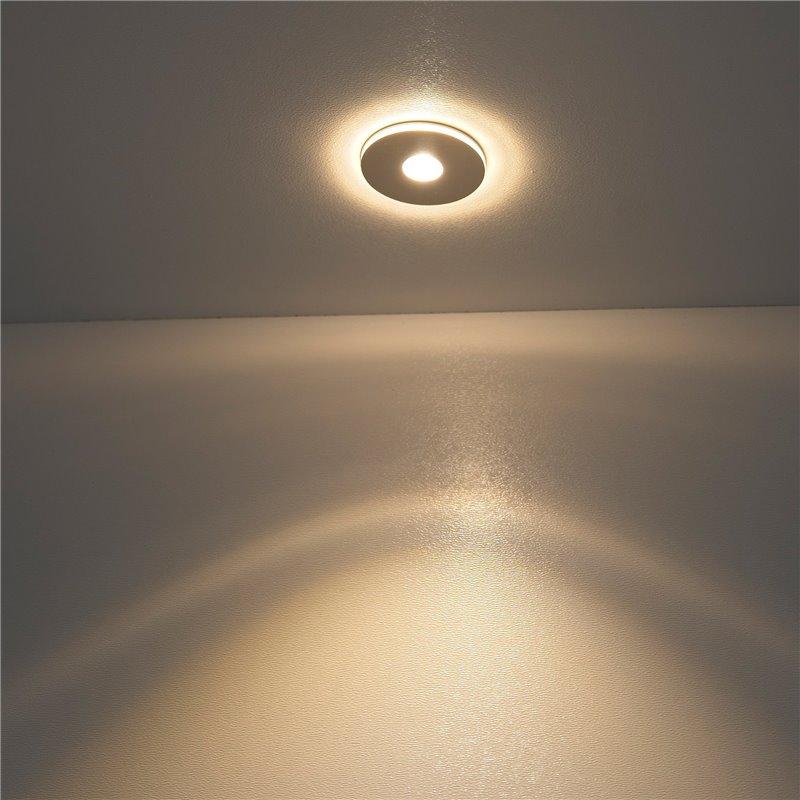

- 3W - 700mA constant current - 160 lumens - IP65 - 3-3.5V DC - 3000K warm white - beam angle: 60°, shines front & side.

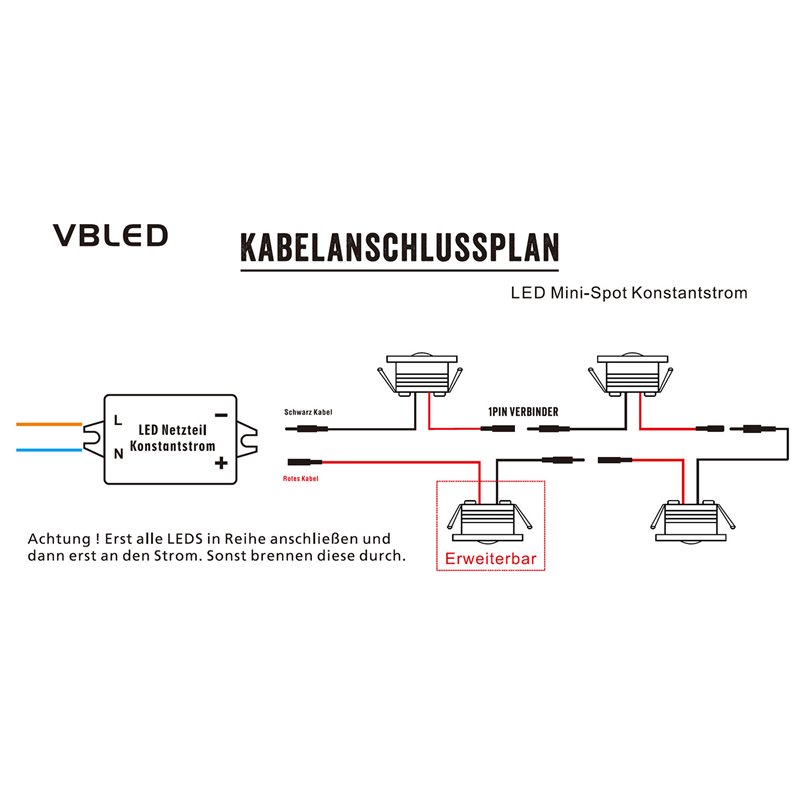

- Series connection with 700mA constant current (Please check the LED Mini Spot constant current cable diagram and find the right LED driver for the mini spots)
- 0 - 100% Dimmable (Only with dimmable LED driver)
- For separate control of the spotlights in vers. Groups, a separate power supply is needed for each group. One remote control has four channels and can therefore control up to four different power supplies - and thus Minispot groups

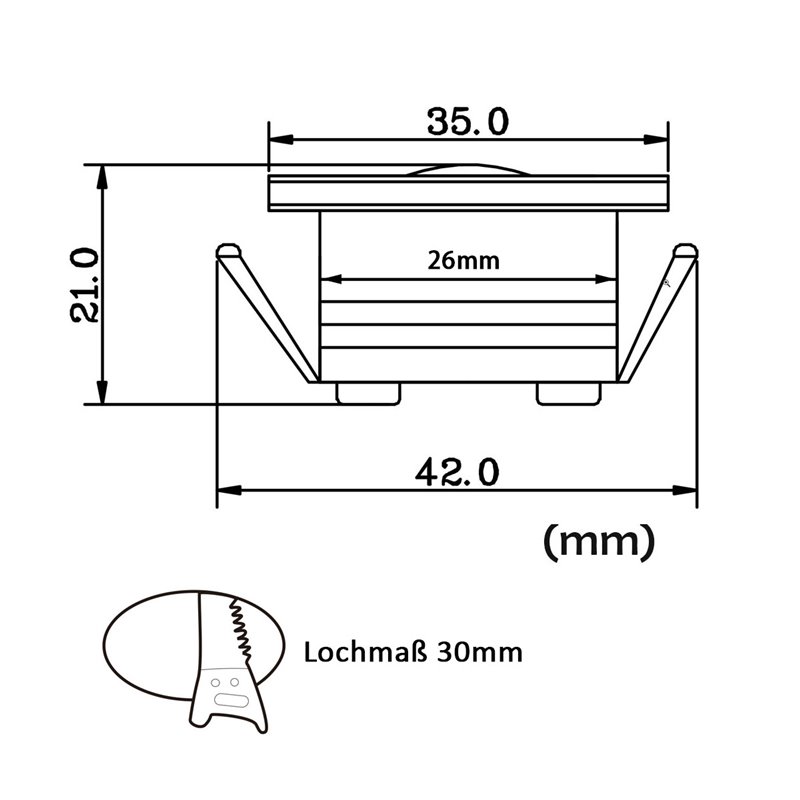

- Dimensions: 35mm x 21mm - hole: 30mm
- With 1-pin connector for easy installation - Lifetime: approx. 30,000 hours - Material: aluminum
You can select the appropriate LED driver for your requirements from this list:
Data sheet
- Power
- 3W
- Input Voltage
- 3VDC
- Color Temperature
- 3000K
- Beam angle
- 60°
- Rated luminous flux (lumen)
- 160
- IP Waterproof Rating
- IP65
- Dimmable
- Yes
