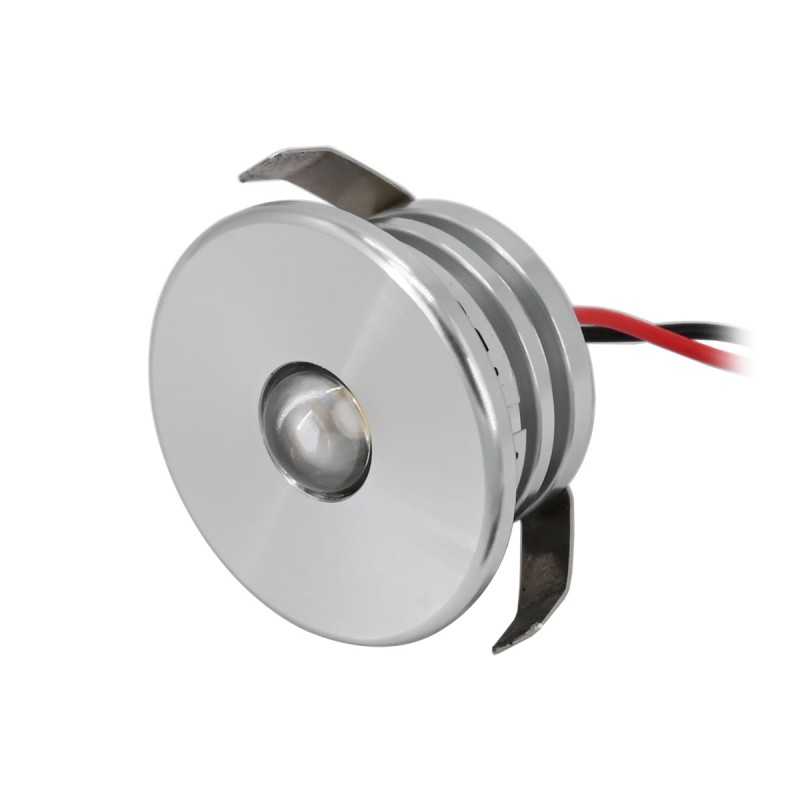

3W Mini LED recessed spotlight "ALDYNE" warm white 12V DC IP44 Waterproof
3W Mini LED recessed spotlight "ALDYNE" warm white 12V DC IP44 Waterproof
"ALDYNE" - LED Mini Spot - 2,4W - 12V DC constant voltage
The extra small, powerful and modern LED mini spot / recessed spot with 12V DC.
Ideal for installation locations where there is limited space for installation or when accent lighting is required.
This LED recessed spot fits perfectly in any place thanks to its simple design. Installation is very easy thanks to the clamping springs in ceilings. The LED recessed spotlights each have a 7m input cable (red) and an output cable (black).
- 2,4W - 12V DC constant voltage - 160 lumen - IP44 - 3000K warm white - beam angle: 60°

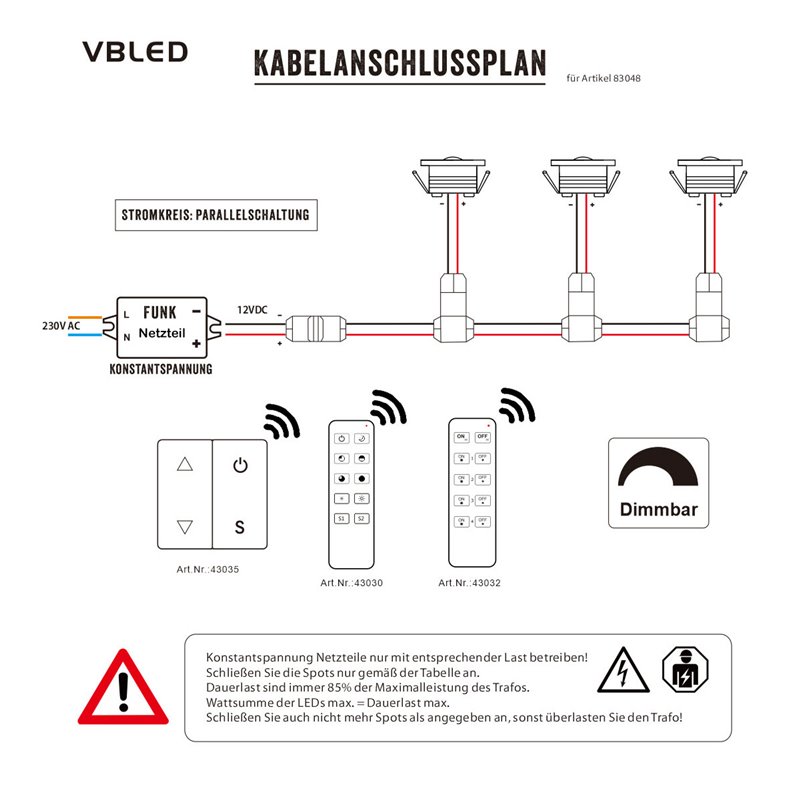

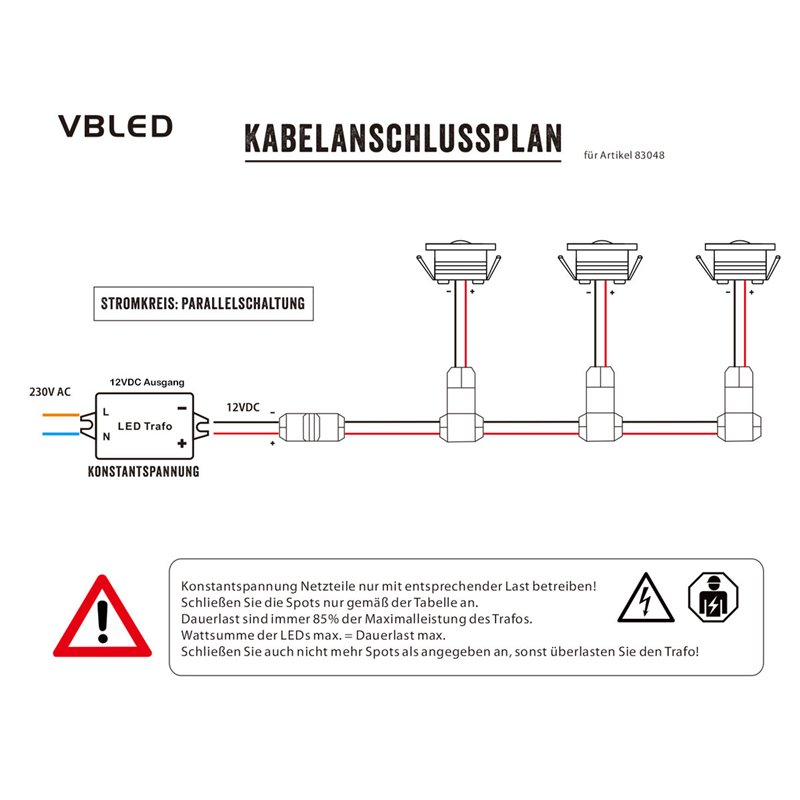

- Parallel connection with 12V DC constant voltage (Please check the LED Mini Spot constant current cable diagram and find the right LED driver for the mini spots)
- 0 - 100% Dimmable (Only with dimmable LED driver)
- For separate control of the spotlights in vers. Groups, a separate power supply is needed for each group. One remote control has four channels and can therefore control up to four different power supplies - and thus Minispot groups

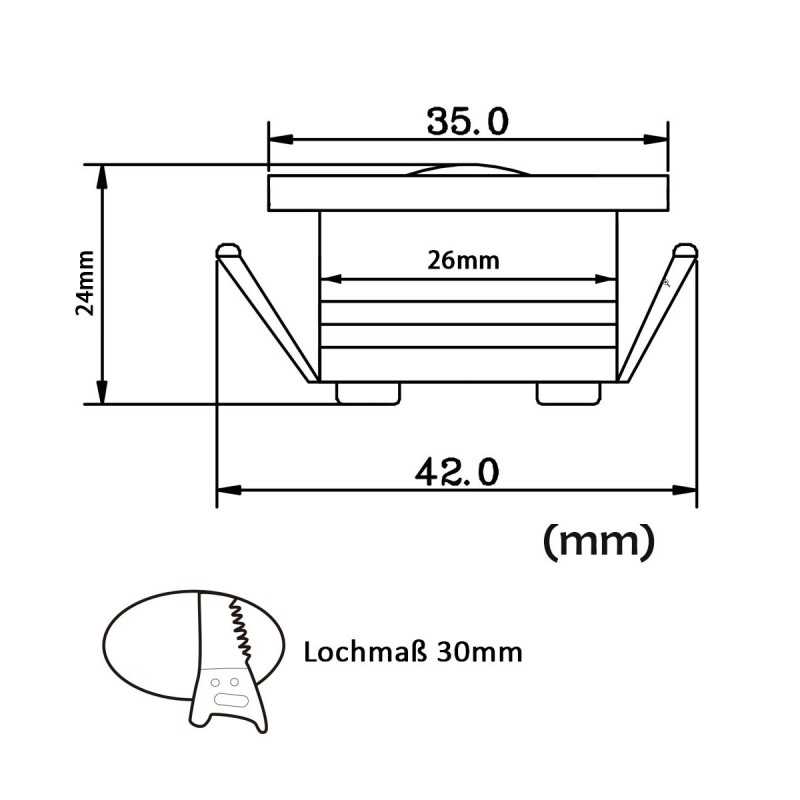

- Dimensions: Φ35mm x 24mm - boron hole: 30mm
- Lifetime: approx. 30,000 hours - Material: aluminum
Data sheet
- Power
- 3W
- Input Voltage
- 12VDC
- Color Temperature
- 3000K
- Beam angle
- 60°
- Rated luminous flux (lumen)
- 130
- IP Waterproof Rating
- IP44
- Dimmable
- Yes
- Material
- Plastic, Aluminum
- Hole Size
- 30mm
